Ultra Thin Compression Load Cell 1kN 500N 200N 100N 50N Subminiature Force Sensor

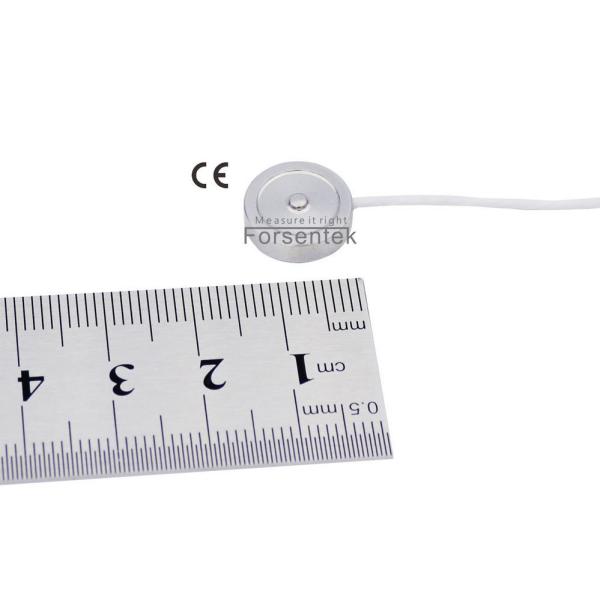

Low profile Compression Load Cell FCCK is made of stainless steel based on strain gauge technology, very compact size with 12.7mm outer diameter and 3.95mm height.Miniature thin load cell FCCK offers 0-50N / 0-100N / 0-200N / 0-500N / 0-1kN five measuring ranges to choose from. 1000 ohms bridge resistance for lower heat emmission, you may find Subminiature Force Sensor FCCK suitable for applications such as clamping force measurement, force overload protection, load distribution measurement, pressing die force measurement, auto equipment,medical divices, assembly line,etc..
Dimensions(unit in "mm")
Specifications
| Capacity | 50N / 5kg / 11 lb
100N / 10kg / 22lb
200N / 20kg / 44 lb
500N / 50kg / 110lb
1kN / 100kg / 220 lb |
| Rated output | 1.5mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±2% R.O. |
| Hysteresis | ±2% R.O. |
| Nonrepeatability | ±0.5% R.O. |
| Creep(3min) | ±0.5% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./oC |
| Temperature shift span | ±0.05% R.O./oC |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±100 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø1.2*3000mm |
| Wiring code | Red--E+ Black--E- Green--S+ White--S- |
Subminiature Compression Load Cell 50N 100N 200N 500N 1000N Ultra Thin Force Sensor
Brief instruction of Rated output(or Sensitivity):
Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of a sensor.
Sensor output = (Power supply * Rated output) * Load / Capacity
Rated output is normally within 1mV/V~3mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional load cell).
Example one: FCCK-200N with 1.5mV/V power by 5V DC,the output range is 0~7.5mV proportional to the applied force.
Example two: FCCK-100N with 1.6mV/V power by 3.3V DC,the output range is 0~5.28mV proportional to the applied force.
Load cell + Signal amplifier:
Load sensor normally outputs 0...+30mV which sometimes can hardly be processed directly,so signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: Subminiature load cell FCCK-500N working with amplifier FSC(0-10V)-24V,the load-voltage relationship will be 0-500N load VS 0-10V output, 1V voltage corresponds to 50N load, 2V voltage corresponds to 100N force,and so on.
Click here to download datasheet
|
|
